IGBT Steel pipe steel bar induction heating machine
1. Brief introduction of IGBT induction heating equipment:
Our high frequency induction heating machine adopts IGBT series and parallel induction heating technology as the core. The induction heating machine heats the work piece to a certain temperature, and then cools it rapidly to change its machine structure to achieve some special mechanic properties.

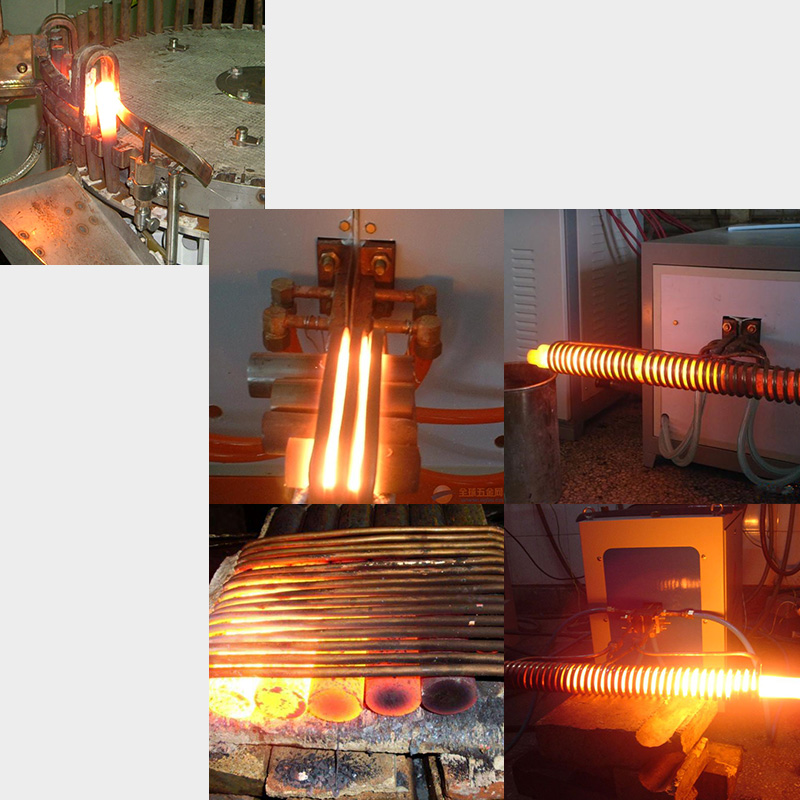

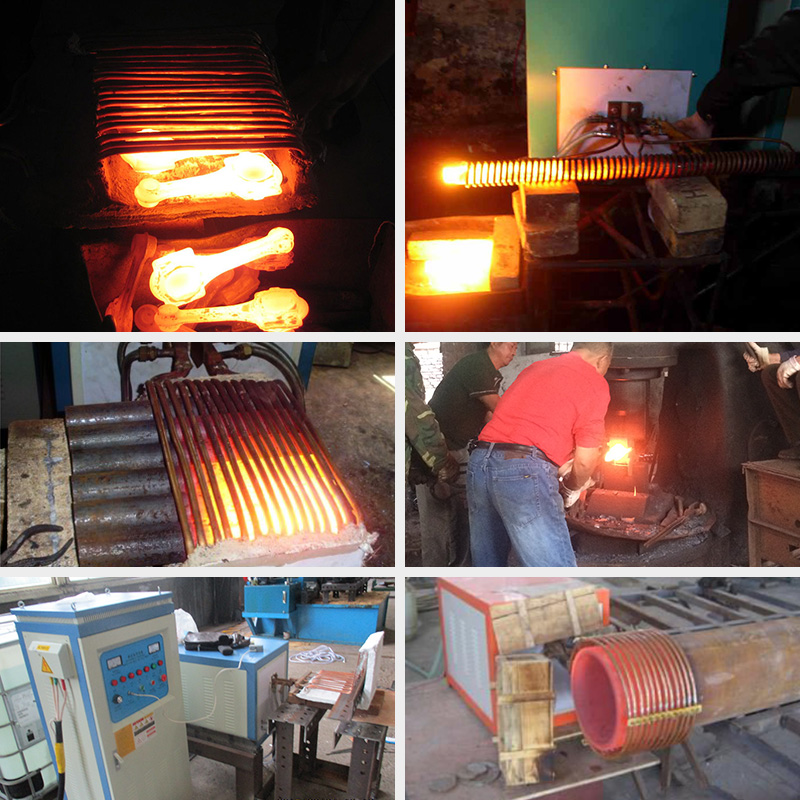

2. Applications of IGBT induction heating machine:
1. Hot forming/forging of the standard components and fasteners
2. Hot forging of the automobile and motorcycle parts, metallic tools
3. Hot forging of embryo gear parts
4. Heat distortion of pipes
5. Other forging applications.
6. Suitable for workpiece with various shape and different diameter
7. Customized forging production solution
3. Features of IGBT induction heating equipment: suitable for heating steel bars, pipes, plates and angle steels.
1. Be applicable to heating, quenching / hardening, etc.
2. IGBT technology as the core.
3. Environmentally friendly: no air pollution, no dust and little noise.
4. Reduced operating cost: high automation, fewer operators needed.
5. Energy saving: high energy conversion.
6. High efficiency: Metal can be heated to its desired temperature, even its melting point, instantly.
7. Duty cycle 100%: can work for 24 hours without a stop.
4. Technical Parameters of LSW-160 IGBT induction heating equipment:
| Model | LSW-160 |
| Working Voltage | 380V, 50/60HZ |
| Max input power | 160kw |
| Oscillation frequency | 18-23KHZ |
| Duty cycle | 100% |
| Cooling water flow | 50L/Min,0.2MPa |
| Weight | 260kg |
| Dimension (L*W*H ) | 600*480*1360mm / 800*500*580mm |
| Material | stainless steel |
| Color | support customized |
| Usage | metal heating,quenching etc |
